Moldex3D 제품 개요

Moldex3D는 선도적인 플라스틱 사출 성형 산업 내 컴퓨터 보조 엔지니어링 제품으로, 최고의 분석 기술과 함께 고객의 가장 폭넓은 사출 성형 응용 범위를 지원함으로써, 제품 설계 및 제조 가능성을 개선, 출시 시간 단축, 최대 제품 투자 회수율을 달성할 수 있게 도와드립니다.

특성

  • CAD 인서트식 사전 처리
  • 고급 자동 3D 메쉬 엔진
  • 고해상도 3D 메쉬 기술
  • 고효율 평행 연산

Moldex3D 메쉬

Moldex3D 메쉬는, 2D 삼각형 및 사각형 메쉬, 3D 사면체, 프리즘, 육면체, voxel(brick)와 피라밋 형태 메쉬, Moldex3D 메쉬 등 각종 다양한 메쉬 유형을 지원합니다. Moldex3D 메쉬는 여러 종류의 주류 메쉬 방식, 곧 정삼각형 표면, 사면체 위주의 표면 메쉬, 정사각형 메쉬, 경계층 메쉬, 순 voxel 메쉬, 혼합식 리얼 메쉬, 그리고 중간면 간소화 메쉬와 같은 메쉬 방식을 제공합니다. 고객은 선택에 부합되는 자신의 특수 시뮬레이션 요건에 따라 메쉬 모형을 만듭니다.

설계 검증
(eDesign)

금형 공정 혁신
(BLM)

금형 공정 혁신+
(Solid)

자동화 메쉬 생성

자동화 메쉬 생성

수동 제어 메쉬
(Hexa, Prism, Pyramid, Hybrid)

CAD/PLM 통합

CAD/PLM 통합
공정 개선

공정 개선
특수 공정 지원

간단, 신속, 효율

정교함, 정확성, 효율

맞춤형, 정교함, 정확성

장점

  • 강력한 메쉬 구획 분할 기술을 갖춘 사전 처리 도구로, 다양한 메쉬 원소 형태를 지원함으로써 고형 메쉬의 생산 효율을 높여줍니다.
  • 정삼각형 메쉬와 사각형 위주의 표면 메쉬 생산 가능
  • 자동 사면체, 경계층 메쉬, 혼합 고형 메쉬, 그리고 voxel 형태 고형 메쉬 지원
  • 고품질 3D 실제 메쉬 생성 가능
  • 자동 복구 도구로 메쉬 품질의 분석 정확성과의 자동 검사를 제공
  • 다음은 Moldex3D 메쉬를 지원하는 메쉬 유입/유출 형식



소프트웨어

3D 고체 그물망

얇은 메쉬

입력

내보내기 완료됨

입력

내보내기 완료됨

ABAQUS



*.inp





Ansys

*.ans

*.ans

*.ans

*.ans

FEMAP

*.neu







HyperMesh

*.ans



*.unv



IDEAS

*.unv



*.unv



Moldex3D

*.mfe

*.mfe

*.msh

*.msh

MSC.Nastran

*.dat

*.dat





MSC.Patran



*.pat

*.pat



Creo (Pro/Engineer)

*.fnf



*.fem



STL







*.stl

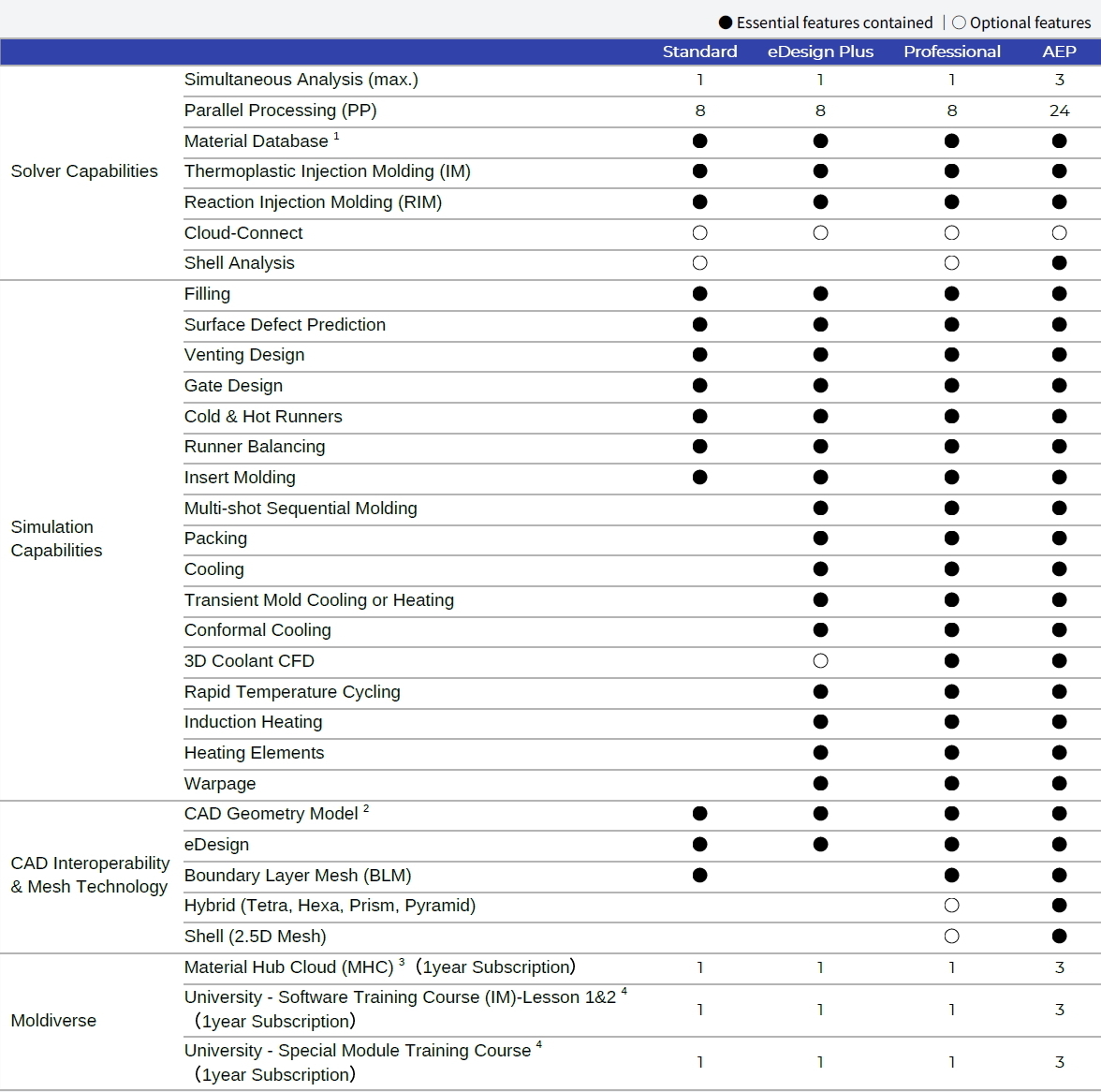

Product Portfolio and Features

● Essential features contained   ○ Optional features
  Standard eDesign Plus Professional AEP

Mesh Technology

Boundary Layer Mesh (BLM)
eDesign
Solid (Hexa, Prism, Pyramid, Hybrid)
Shell (2.5D Mesh)

Standard Injection Molding

Solver Capabilities
Simultaneous Analysis (max.) 1 1 1 3
Parallel Processing (PP) 8 8 8 24
Material Database 1
Material Hub Cloud (MHC) 2 1 3
Thermoplastic Injection Molding (IM)
Reaction Injection Molding (RIM)
Simulation Capabililties
Filling
Surface Defect Prediction
Venting Analysis
Gate Design
Cold & Hot Runners
Runner Balancing
Packing
Cooling
Transient Mold Cooling or Heating
Conformal Cooling
3D Coolant CFD
Rapid Temperature Cycling
Induction Heating
Heating Elements
Warpage
Insert Molding
Multi-shot Sequential Molding

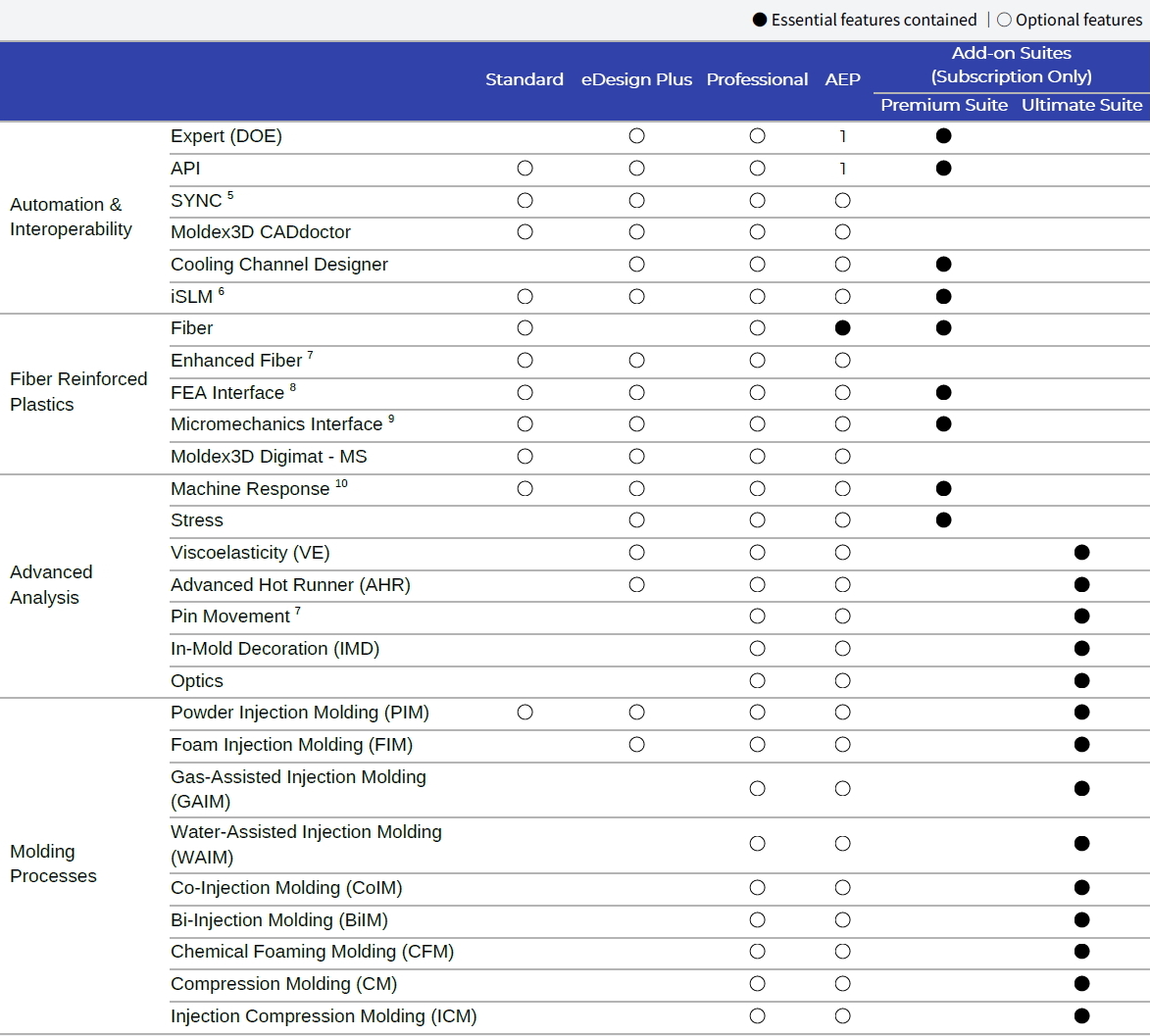

Solution Add-on

Automation & Interoperability
Expert (DOE)    1
API  1
SYNC 3
Moldex3D CADdoctor
iSLM 4 1 3
Fiber Reinforced Plastics
Fiber 5
FEA Interface 6
Micromechanics Interface 7
Moldex3D Digimat-RP
Advanced Analysis
Machine Response 8
Plastification
Stress
Viecoelasticiry (VE)
Advanced Hot Runner (AHR)
In-Mold Decoration (IMD)
Optics
Molding Processes
Powder Injection Molding (PIM)
Foam Injection Molding (FIM)
Gas-Assisted Injection Molding (GAIM)
Water-Assisted Injection Molding (WAIM)
Co-Injection Molding (CoIM)
Bi-Injection Molding (BiIM)
PU Chemical Foaming Molding (CFM)
Compression Molding (CM)
Injection Compression Molding (ICM)
  1. Database: Thermoplastics materials, thermoset materials, molding materials, coolant materials, and mold materials.
  2. Material Hub Cloud (MHC) is a cloud database offering over 8,000 data entries to find suitable materials, view property data, and find alternatives.
  3. Moldex3D SYNC supports PTC® Creo®, NX, and SOLIDWORKS®.
  4. iSLM is an intelligent and interactive data management platform for plastic product development lifecycle.
  5. Flat Fiber and Flow-Fiber Coupling functions require additional license EnhancedFiber.
  6. Moldex3D FEA Interface supports Abaqus, Ansys, MSC Nastran, NX Nastran, LS-DYNA, MSC Marc, and OptiStruct.
  7. Moldex3D Micromechanics Interface supports Digimat and CONVERSE.
  8. Machine Response function requiresthe machine file received from Machine Characterization service.



System Requirements

A. Supported Platform
Windows

Windows 10, Server 2019

Linux

CentOS 7 series, CentOS 8 series, RHEL 7 series, RHEL 8 series (Solver and LM only)


B. Hardware Recommendation
Minimum
CPU AMD Ryzen™ 7 series, Intel ® Core™ i7 series
RAM 16 GB RAM
HDD 20 GB free space (For Program Installation)
Recommended
CPU AMD EPYC™ Milan/Milan-X series, Intel® XEON® Gold/Platinum/Bronze series
RAM 16GB x 8 With ECC / 3200Mhz
HDD 4 TB SSD (For Project Management)
Graphic Card NVIDIA Quadro series, AMD Radeon series
Screen Resolution 1920 x 1080

  • To increase calculation efficiencyand stability, it is recommended to switch off Hyper-Threading under RC/DMP structure.
  • For memory population rules, please refer to your CPU processor type for optimized performance.
